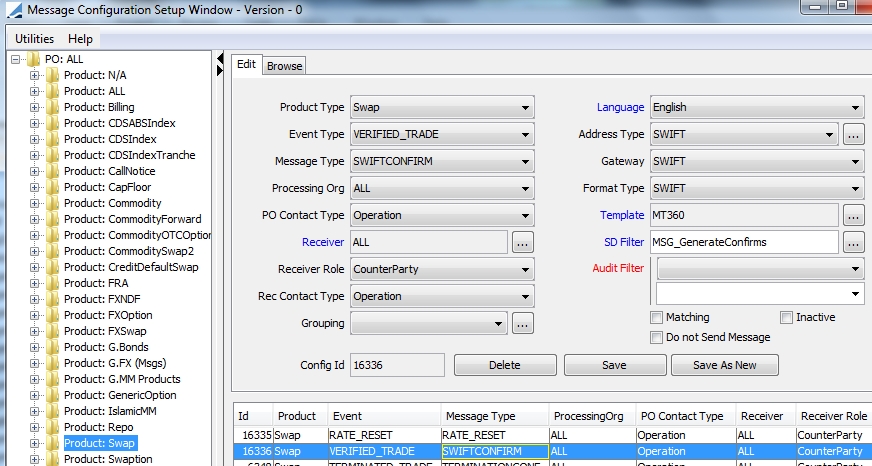

lMessage Setup

Select a product type to which the message configuration applies.

Choose “N/A” to generate messages from netted transfers and statements that have no reference to a product.

The product type can be a group of products create using Configuration > Product Configuration > Product Group (menu action refdata.ProductGroupWindow). Note that the environment property USE_PRODUCT_GROUP should be set to true in order to allow specifying message configurations by product group.

 Ⓘ   [NOTE: If you specify a message configuration for the product group and for the product, the message configuration for the product will take precedence over the message configuration for the product group]

Select the type of event that will trigger the generation of the message. The following types of events are available:

 Ⓘ   [NOTE: A message event cannot trigger the generation of another message]

Select the type of message that will be generated.

 Ⓘ   [NOTE: A single event may trigger the generation of multiple types of messages - Specify a message configuration for each type of message]

The following message types are available:

Refer to the Calypso Cash Management User Guide for details on generating account statements.

Refer to the Calypso Collateral Management User Guide for details on generating margin call statements.

Message types are registered in the "messageType" domain.

Select the processing org for which the message configuration is specified, or ALL.

The following order applies for selecting a message configuration, when multiple message configurations are specified with multiple combinations of processing orgs and receivers.

Note that if the environment property MSGENGINE_MULTMESS is set to true, even if a specific configuration is found, if there are any general configurations where the address type is different from that of the specific configuration, messages will be generated for the general configurations as well.

When no message setup is defined for a PO, the system checks if a message setup is defined for the parent PO and uses it if available.

If you do not want the child PO to inherit the message setup of the parent PO, set the new environment property USE_PARENT_PO_FOR_MESSAGE_SETUP = false. It is true by default.

Select the type of contact that sends the message. The selected contact information is used to identify the sender of the message.

When LOOK_PARENT_CONTACT = false or not set, the contact information comes from the child sender. The message is not generated if no contact is found at child level.

When LOOK_PARENT_CONTACT = true, all the contact information comes from the parent sender if no contact is found at child level. If no contact is found at parent level and child level, the message is not generated.

Universal Sender

The domain “SwiftSenderBIC” may contain a universal BIC Code used to populate the sender of all generated Swift Messages.

Select the receiver of the message to which the message configuration applies, or ALL. Note that the message will only apply to the legal entities of specified receiver role.

ALL indicates that this message configuration applies to all legal entities of specified role.

If you want to use a specific template for a given counterparty for example, set the Receiver Role to CounterParty and select the counterparty here.

Client Account Messages

When a trade is captured with the attribute ClientAccount that contains a settlement account, it is possible to generate a message for the legal entity / role of the account, provided a message configuration is defined for this legal entity / role.

CHECK_STATIC_DATA_FILTER

Note the use of the environment property / engine parameter CHECK_STATIC_DATA_FILTER when there is a specific configuration for the receiver with a static data filter. True to pick up the general message configuration if any, and generate the corresponding message, if the static data filter is not satisfied for the specific configuration. False to prevent any message generation if the static data filter is not satisfied, regardless of the existence of a general message configuration.

If the static data filter on the specific configuration is satisfied, the generation of one or two messages depends on the environment property MSGENGINE_MULTMESS.

Select the role of the legal entity that will actually receive the message.

The role CounterParty will retrieve all legal entities with the role CounterParty in the trade (including counterparties defined in fees and allocations). For payment messages, the role CounterParty will retrieve the transfer’s external legal entity.

The role ProcessingOrg will retrieve the book’s owner. For payment messages, the role ProcessingOrg will retrieve the transfer’s internal legal entity.

The role Agent will retrieve all agents specified in the SDIs associated with the trade. Note that for payments messages, the Msg checkbox must also be checked for the agent on the SDI.

Other roles will retrieve legal entities of specified role from associated fees and allocations.

To send a given message to multiple legal entities of the trade, specify a message configuration for each role.

You can configure the message with the counterparty for the role “ConfirmReceiver” that has a given BIC code, while the counterparty has another BIC code for the role “CounterParty”. In the outgoing MT360 message, the BIC code used as Receiver is the one defined in the Contact with role “ConfirmReceiver”, while the BIC code used in the field 87A (Party B) is the one defined in the Contact with role “ALL” or “CounterParty”.

Select the type of contact that receives the message.

To send a given message to multiple contacts, specify a message configuration for each contact type.

When LOOK_PARENT_CONTACT = false or not set, the contact information comes from the child receiver. The message is not generated if no contact is found at child level.

When LOOK_PARENT_CONTACT = true, all the contact information comes from the parent receiver if no contact is found at child level. If no contact is found at parent level and child level, the message is not generated.

Select a grouping key to group a certain type of message. The actual grouped message will be of type GROUPED_MESSAGE. Grouping keys are defined using Configuration > Messages & Matching > Message Grouping (menu action util.MessageGroupingWindow).

See Message Grouping for details.

Select the language in which the message will be printed.

You should make sure that you use a template written in the desired language. By default, the system does not perform any translation. The language is only used to format "date" message keywords".

You can activate the Multi-Language function to translate the values of the message keywords.

See Defining Message Templates.

Select the type of address information that should be retrieved from the contact.

For example, for the SWIFT address type, the Swift code is specified on the contact.

Click ... to add address types as applicable. The address type information can be specified on the contact, using the contact attributes.

Select the gateway that is used to physically transmit the message.

Out-of-the-box, the FILE, SWIFT, and DTCC gateways are supported.

See Message Sender for details.

You can implement custom gateways as applicable. Refer to the Calypso Developer’s Guide for details.

Gateways are registered in the "gateway" domain.

Select the format of the message. Out-of-the-box, the CSV, DTCC, HTML, PDF, TEXT, SWIFT and XML formats are supported.

For the PDF type, you can select an HTML template. When the message will be formatted, it will use the selected HTML template, format it exactly as if the format type was HTML, and then convert it from HTML to PDF.

You can implement custom types of formatters as applicable. Refer to the Calypso Developer’s Guide for details.

Format types are registered in the "formatType" domain.

Note on FX Swaps

In order to allow generating a message for the near leg and a message for the far leg for FX Swaps, you need to add the format type to the domain "multiMessageFormatType".

If not set, only SWIFT messages allow generating a message for the near leg and a message for the far leg for FX Swaps.

Also, the domain "multiMessageTradeEvent" should contain the following values:

Click ... to select a message template.

Defining document templates is described under Help > Message Template Keywords.

See Defining Message Templates.

A number of document templates are provided out-of-the-box under <calypso home>/client/resources/com/calypso/templates. They can be customized or you can create your own templates. Document templates are registered in the domain “MESSAGE.Templates”. Templates contain free-form text as well as template keywords to retrieve information from trades, messages, transfers, etc.

Swift templates are registered in the domain “SWIFT.Templates”.

See Swift Messages for the list of supported Swift messages.

Notes on Payment Messages

It also allows producing the MT202 COV (instead of a standard MT202) when a cover message is required. A cover message is required when the counterparty SDI (settlement instruction) is flagged with "Msg".

If "Msg" is checked in the Agent tab of the counterparty's SDI and "Msg" is checked in the Agent tab of the PO's SDI, MT202Cov (to PO agent) and MT103 (to counterparty agent) messages are generated instead of MT202 and MT202.

It also allows producing the "pacs.009.001.06.COV" (MT202 COV) (instead of a standard "pacs.009.001.06") when a cover message is required. A cover message is required when the counterparty SDI (settlement instruction) is flagged with "Msg".

It also allows producing the MT205 COV (instead of a standard MT205) when a cover message is required. A cover message is required when the counterparty SDI is flagged with "Msg".

See Payment Messages for complete details on setting up message configurations for payments.

Click ... to select a static data filter to restrict the message generation based on trade, product and legal entity attributes as applicable.

It can be useful, for example, if you do not want to generate a message for a given counterparty with specific attributes. See also “Do Not Send Message” below.

Double-click the SD Filter label to specify a static data filter.

Note that the static data filter of a CANCELED_TRADE message configuration, MUST be the same as the static data filter of the VERIFIED_TRADE message configuration, if any.

The audit filter is a set of trade fields that are monitored to determine if a message needs to be regenerated if the trade fields are modified.

The first field allows selecting the process to be performed for the audit filter selected in the second field.

The possible processes are:

Audit filters are created using Configuration > Filters > Audit Filter from the Calypso Navigator. You can also double-click the Audit Filter label to bring up the Audit Filter window.

This checkbox can be used to identify the reference confirmation used for matching incoming messages, when you specify multiple confirmations.

Note that the actual use of this checkbox is dependent upon the implementation of the interface Matcher for a given type of incoming message.

This checkbox can be used when you have a general configuration that applies to ALL except to a specific case.

For example, you have a general configuration that applies to ALL agents, except to agent ABANK. So you create the general configuration, then you create the specific configuration for the agent ABANK (or using a static data filter), and you check the “Do Not Send Message” checkbox.

The message will be generated for all agents except for agent ABANK.

Check to deactivate a message configuration. A deactivated configuration will not generate any message.

Deactivated message configurations will appear grayed-out.

Displays the configuration id given by the system when the message configuration is saved.
