Defining Future Contracts

A future contract is a collection of future products traded on a given exchange at a given expiry month (for example, the EUROLIBOR 3-month traded on the Chicago Mercantile Exchange defines three future products on JUN09, SEP09, DEC09). The future products can be traded, and used as curve underlying instruments.

Quick Reference

Creating future contracts and products is a two-step process:

•

You first create the contract

•

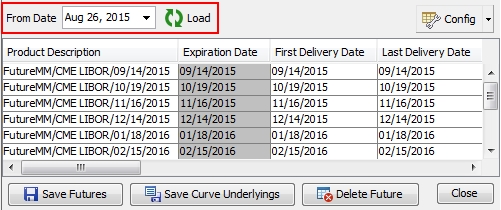

Then you generate and save the actual future products that can be traded

Examples for setting up futures, including those with specific setup requirements.

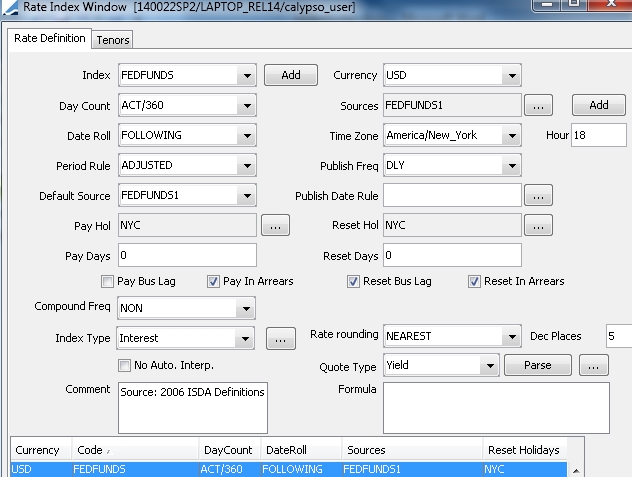

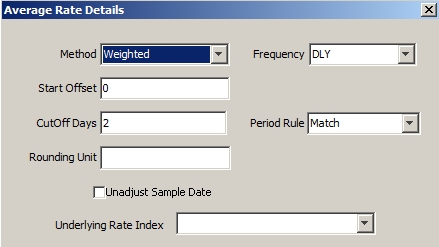

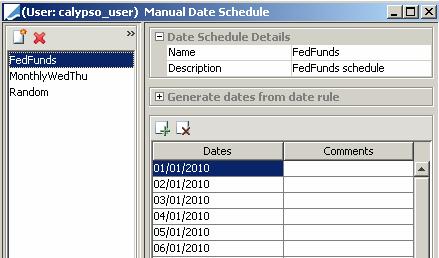

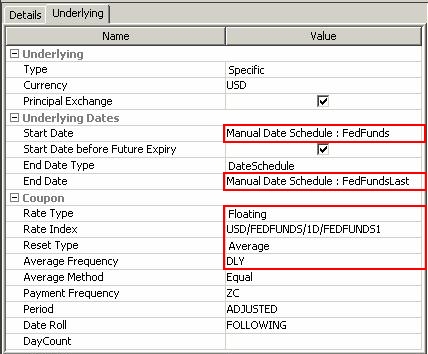

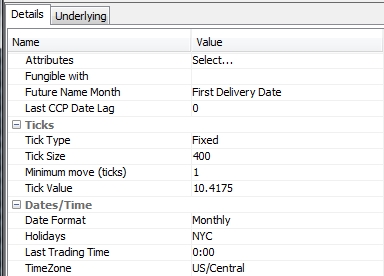

Sample FedFund Future Setup

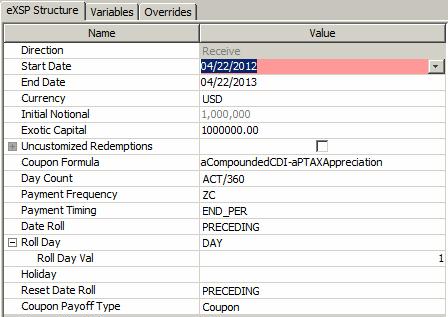

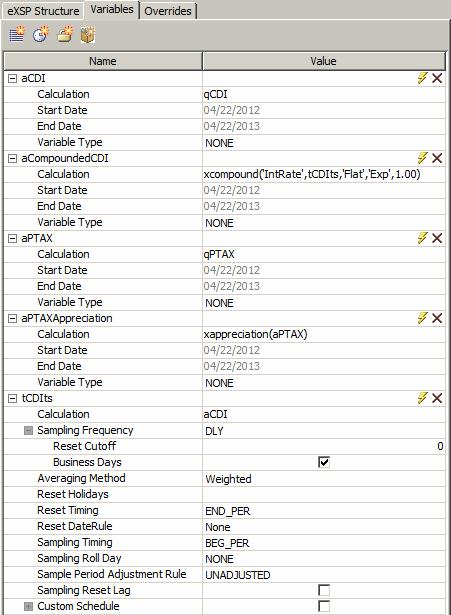

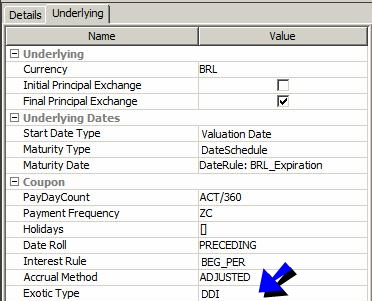

Sample DDI Future Setup

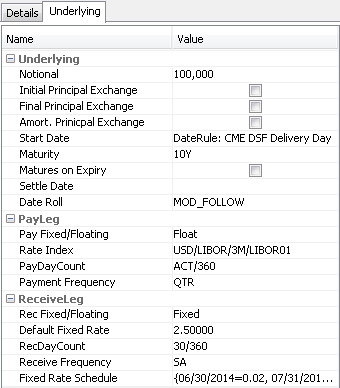

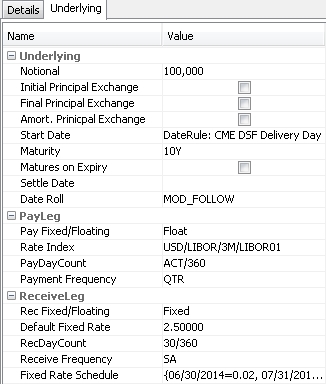

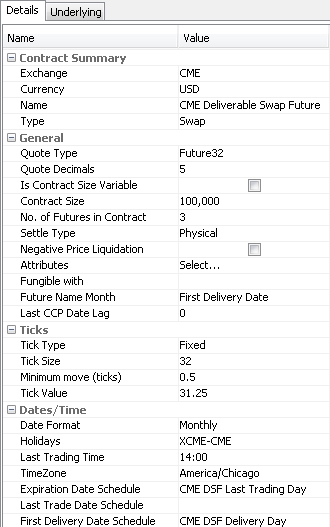

CME Deliverable Swap Future

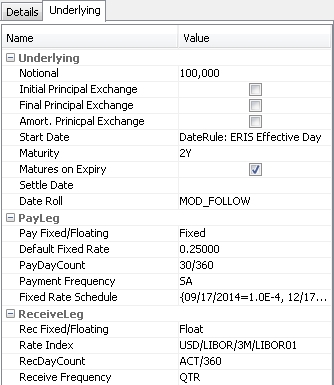

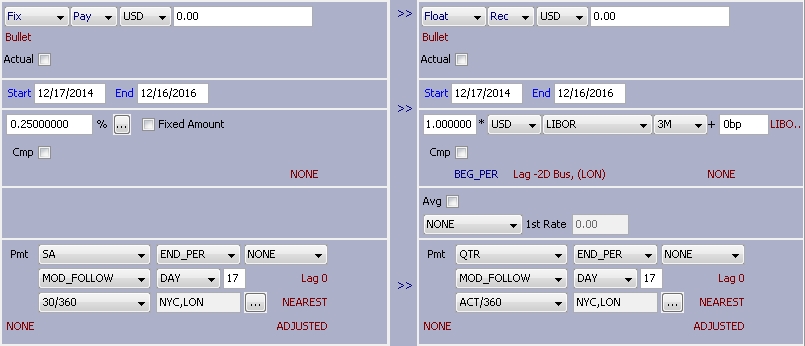

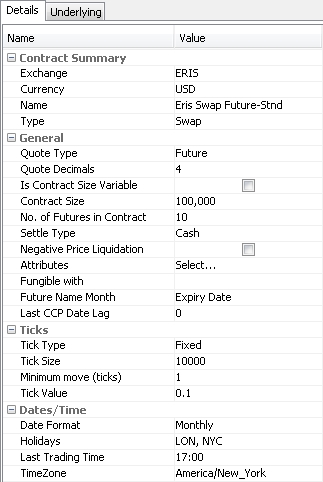

ERIS Swap Future

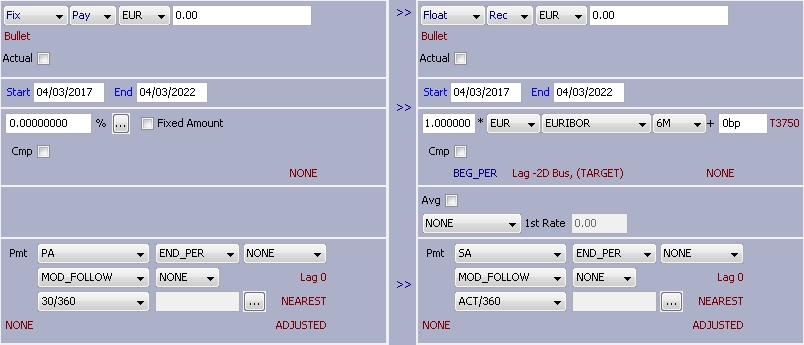

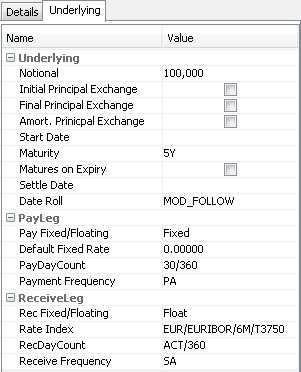

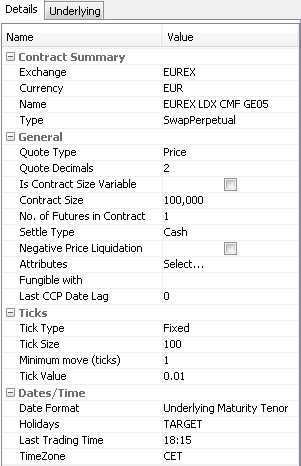

EUREX LDX Constant Maturity Swap Future

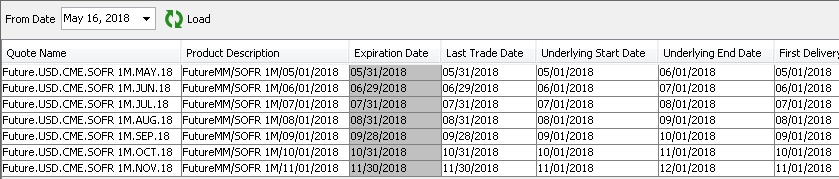

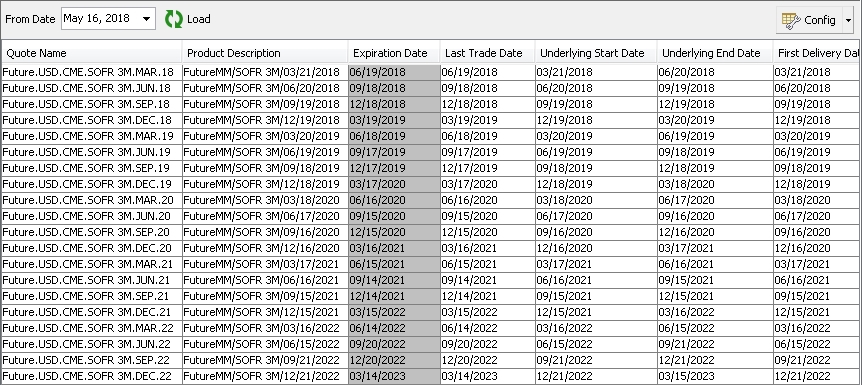

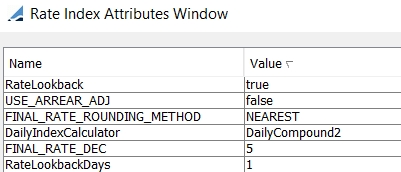

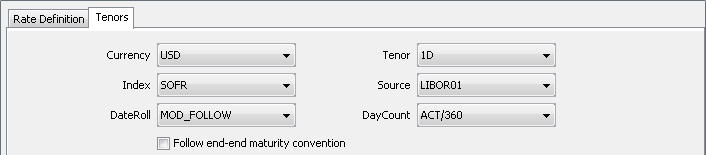

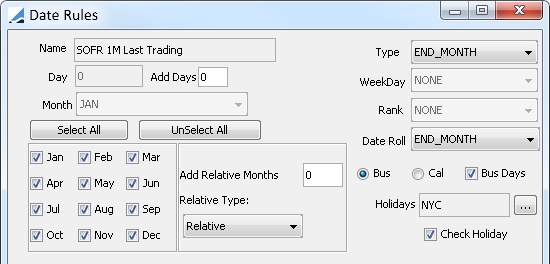

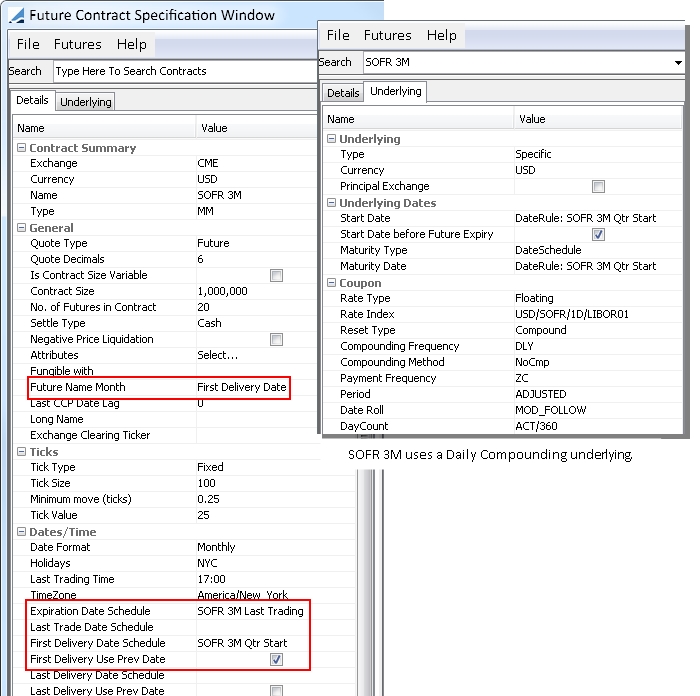

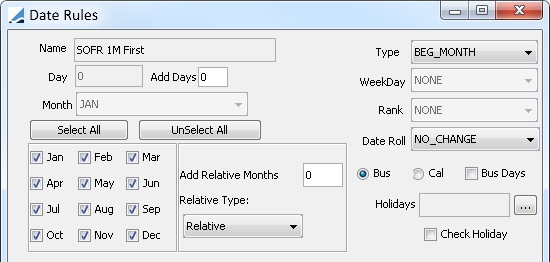

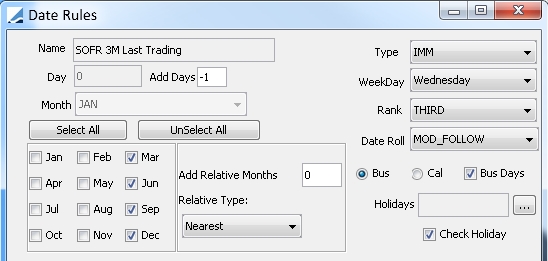

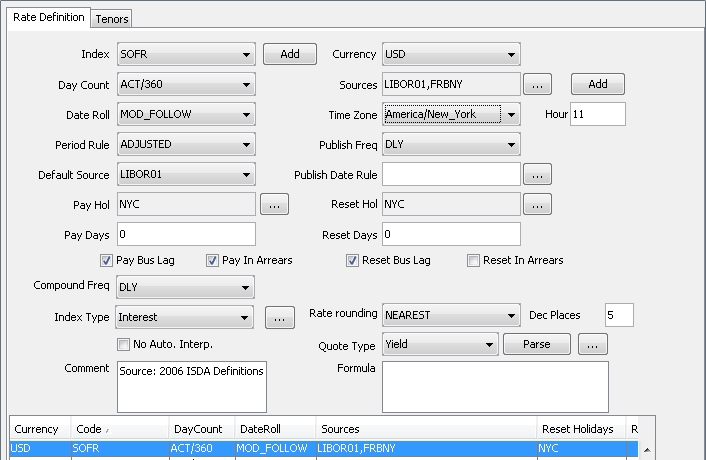

Secured Overnight Financing Rate (SOFR) Futures

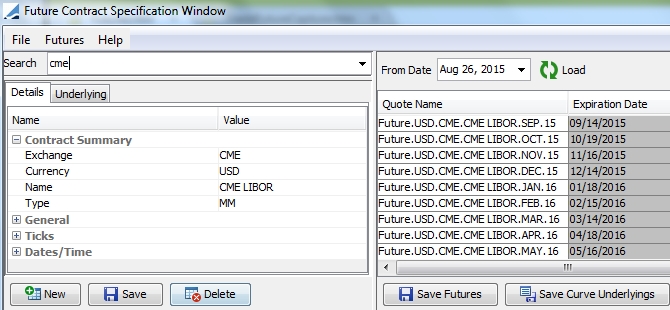

1. Editing and Creating Future Contracts

From the Calypso Navigator, navigate to Configuration > Listed Derivatives > Future Contracts (menu action refdata.FutureDefinitionWindow) for creating future contracts.

To create a new contract, click New. Then enter the fields described below: Details and Underlying.

To load and edit an existing contract, type in a few letters in the Search field. All contracts that contain those letters will appear. You can select a contract from the list. You can then edit the fields described below as needed.

Click Save to save your changes.

Note that if the Authorization mode is enabled, an authorized user must approve your entry, provided that "FutureContract" has been added to the "classAuthMode" domain.

1.1 Details Panel

Select the Details panel to define the details of the contract.

Details - Contract Summary

Fields	Description
Exchange	Select the exchange where the contract is traded. An exchange is a legal entity of role MarketPlace.
Currency	Select the currency in which the contract is traded.
Name	Enter the contract name. Note that a unique contract is defined by its combination of Name, Exchange and Currency, so that you cannot have an MM future contract and a bond future contract with the same name and currency on the same exchange. Australian bond futures on SFE should be named XM or YM, in order to allow the proper computation of the settlement amount.
Type	Select the type of future: BRL, Bond, CDSIndex, Commodity, Dividend, Equity, EquityIndex, FX, MM (Money Market), StructuredFlows (cash legs), Swap, SwapPerpetual, Volatility.

Details - General Fields

Fields

Description

Quote Type

Select the quote type of the future’s price. For example, “Yield” for FutureBRL contracts, “Future” defined as “100 - Rate = Price” for FutureMM contracts, and “Price” for FutureBond contracts.

For Future32 and Future64, the format is HHH-TTF.

•

H: whole points.

•

TT: number of whole 32nds or 64ths of a point

•

F: fractional values of 32nds or 64ths

–

For Future32, valid values are 0, 1 (1/8), 2 (1/4), 3 (3/8), 5 (1/2), 6 (5/8), 7 (3/4), 8 (7/8).

–

For Future64, valid values are 0, 2 (1/4), 5 (1/2), 7 (3/4).

Quote Decimals

Define the decimal precision at the contract level. The system uses this decimal precision in the Price field in the trade window and in quote rounding when calculating the NPV.

Is Contract Size Variable

Check if the contract size is variable.

This applies to Equity index futures. The contract size is equal to index price * tick size * tick value. The equity index product is selected in the Underlying panel, and the contract size is calculated when the future is actually traded.

This also applies to Electricity Futures.

See Commodity Future Contracts for details.

Contract Size

Only applies when "Is Contract Size Variable" is not checked.

Enter the face value of the underlying product represented by one future.

No. of Futures in Contract

Enter the total number of future products traded in the contract. For example, for the CME Eurodollar contract there are five years worth of tradable expiry months, for a total of twenty tradable futures.

Settle Type

Select the settlement type of the underlying product: Cash or Physical.

For Gold FX Futures, you can also select "Spot Deferred" to identify a future contract that prices Gold for spot delivery but the delivery is deferred each day with no last trading date. These contracts do not expire.

Negative Price Liquidation

Check to allow entering negative prices for trade capture and quotes.

Attributes

Optional.

Click Select... and then the down arrow to the right to add attributes to the contract definition.

Out-of-the-box Attributes

•

CommodityReset - Select the commodity reset for commodity futures.

•

DateFormat - You can set the attribute DateFormat to ‘MMM yy’ to display the contract in this format in the Future trade worksheet. The value is case sensitive.

Other available formats:

–

"dd MMM yy" for 10 Mar 08 for example

–

"dd MM yyyy" for 10 03 2008 for example

–

"dd.MM.yyyy" for 10.03.2008 for example

More examples can be found at http://download.oracle.com/javase/6/docs/api/java/text/SimpleDateFormat.html

Ⓘ [NOTE: For the nominal calculator SFEFutureNominalCalculator, the DateFormat attribute must be set to "MMM yy"]

•

FutureRoundingMethod - You can set the attribute FutureRoundingMethod to NEAREST, UP, or DOWN. It will be applied to round (Trade Price * Tick Size * Tick Value) when computing the premium.

•

IsDefaultDeliverableFutureContract - You can set the attribute IsDefaultDeliverableFutureContract to Yes for Commodity Storage-Based or Vintage-Based products. This contract will be used as the default contract for delivery if a future delivery set is not defined for the product.

•

IsDiscountedVM - This is used in the context of ETD clearing.

–

If “IsDiscountedVM=true” and the booking date is before the expiration date of the future, the status of the trade open quantity is set to “forward”, and the trade is only liquidated when the booking date becomes equal to the expiration date.

–

If “IsDiscountedVM=false”, the trade can be liquidated even if the booking date is before the expiration date.

•

QuotePriceInContractSizeTerms - When true, the price_from_curve is multiplied by the contract size, to return the price on the same terms as price_from_quote. It is not multiplied by the contract size otherwise. Default is false.

•

SettlementCurrency - When set, the Principal transfer is converted to the specified SettlementCurrency.

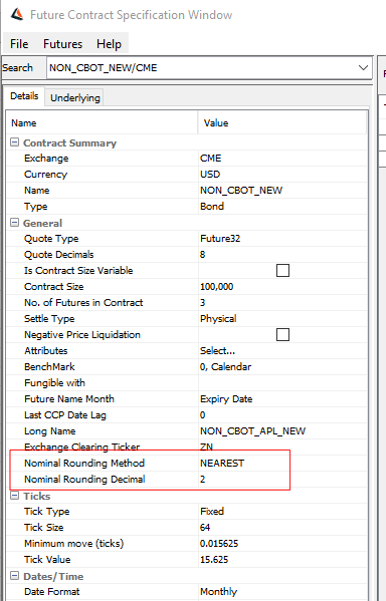

Fields Specific to Non-CBOT exchanges

The below 2 fields are used to implement the rounding for all exchanges other than CBOT.

•

Nominal Rounding Method - The nominal rounding method is a drop down. Rounding by default will be NEAREST.

•

Nominal Rounding Decimal - This is rounded upto 2 places.

The rounding is done as follows for non-CBOT exchanges:

SA/PV = ROUND_Curr(ROUND_ContractDef(Price * Tick Size * Tick Value ,2)* Quantity ,2)

Here the ROUND_Curr is the currency default rounding, while the ROUND_ContractDef is the rounding being applied at the contract level.

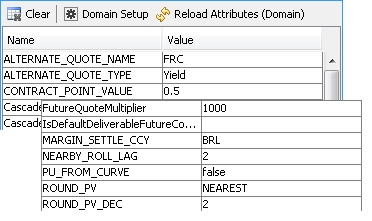

Attributes Specific to BRL Futures

•

FutureQuoteMultiplier: This allows conversion of quotes in different locale formats by using the multiplier entered in the field, which produces a result that can be interpreted by the curve window.

For example, if the USD/BRL FX Future has a strike of 3.62 but the quote is expressed as 3,6200.00, setting the attribute to 1000 matches the quote with the contract and allows for curve generation.

•

ALTERNATE_QUOTE_NAME - Used in conjunction with ALTERNATE_QUOTE_TYPE for creating curve underlyings for the DI curve.

•

ALTERNATE_QUOTE_TYPE - Used in conjunction with ALTERNATE_QUOTE_NAME for creating curve underlyings for the DI curve.

•

MARGIN_SETTLE_CCY - Used in conjunction with CONTRACT_POINT_VALUE to convert settlement measures into BRL currency. Enter the currency code.

•

CONTRACT_POINT_VALUE - Used in conjunction with MARGIN_SETTLE_CCY to convert settlement measures into BRL currency. Enter a numerical value for points.

•

PU_FROM_CURVE - Used in pricing. If true, it will use the curve to price. If false, it will use quotes to price.

•

NEARBY_ROLL_LAG - Used for setting the number of days when the future contract should be rolled.

•

You can set the rounding method and number of decimals to round the pricer measures computed on Future trades in the attributes:

–

ROUND_PV

–

ROUND_PV_DEC

•

IS_NEXT_DAY_CASH_SETTLE - Set to Yes to drive Brazilian P&L calculations.

BenchMark

For bond futures that are used as benchmarks to price bonds, you can specify the number of days before the last trading day, within which, if the pricing occurs, the future contract will be rolled to the next one. This is only for pricing purposes. As the future approaches expiry, the liquidity shifts to the next contract.

Enter the number of days before the last trading day, and select business days or calendar days.

Fungible with

Select a contract that can be liquidated with the current contract, if any.

Future Name Month

By default, futures are displayed as Contract Name/Contract Date, example “CME LIBOR/07/18/2016”, where the contract date can be one of the following:

•

First Delivery Date

•

Last Delivery Date

•

Last Trading Date

•

Expiry Date

•

Prompt Month - You need to select a manual date schedule for the expiration date schedule and enter the reference date in the Comments of the manual schedule in the form yyyyMM or yyyyMMDD. In the case where the Comments is monthly only, the date will default to the first calendar day of the month. This will populate the product code "Prompt Month" on the future option products.

You can also choose the following logic using the domain “ProcessingConfig”:

Value = LegacyProductDesc, Comment = false

Futures are displayed as Contract Name/Contract Date, where the Contract Date is displayed as MMMyy for “Monthly” date format or DDMMMyy for “Daily” date format. Example: “CME LIBOR/JUL16” for “Monthly” or “CME LIBOR/18JUL16” for “Daily”.

Last CCP Date Lag

Number of business days between the expiration date and the last CCP date. When the future products are generated the Last CCP Date is computed accordingly.

This date represents the last date on which the CCP (the exchange clearinghouse) has any risk to the default of a member carrying a position in that future.

Long Name

Contract long name.

Exchange Clearing Ticker

For ETD Clearing - Market standard contract symbol used by the exchange and trade interface.

Nominal Rounding Method

The nominal rounding method is a drop down. Rounding by default will be nearest.

Nominal Rounding Decimal

This is rounded upto 2 places.

Details - Ticks

Fields Description

Tick Type

Select the tick type: Fixed or Variable.

If the tick type is variable, you need to specify the nominal calculator to compute the contract size. See below.

Nominal Calculator

Only applies to variable ticks.

Specify the nominal calculator that allows computing the contract size.

Out of the box, the following calculators are available:

•

NZD / AUD futures - The nominal calculator should be set to "SFEFutureNominalCalculator."

•

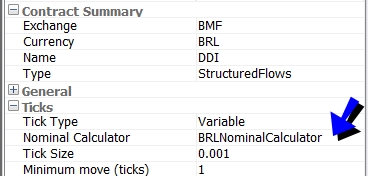

DDI Futures - The nominal calculator should be set to "BRLNominalCalculator."

•

NOMX Nordic Bond Futures (NOMX Bond and NOMX MM futures, which use Yield as the quote type and have a different settle calculation than standard bond futures) - The nominal calculator should be set to "NOMXFutureNominalCalculator."

Otherwise, you need to implement a custom calculator for computing the contract size.

To implement a custom calculator, create a class named tk.util.<calculator name> that implements tk.product.util.FutureNominalCalculator.

Minimum move (ticks)

Enter the minimum allowable price fluctuation for the contract, as defined by the exchange, in decimal format.

Tick Value

Only applies to fixed ticks.

Enter the change in value of one contract, given a change in the contract’s price equal to the Minimum Move (one tick).

Tick Value = Contract Size / Tick Size

Tick Size

The Tick Size is the denominator of the fractional representation of the Minimum Move.

For instance, a minimum move of 0.01, or 1/100, gives a Tick Size of 100. You can add tick size values to the dropdown menu through the domain "tickSize".

Details - Dates/Time

Fields

Description

Date Format

Select the date format for the quote names of the future products:

•

Daily - The quote name contains the day, month and year.

•

Monthly - The quote name contains the month and year.

•

Underlying Maturity Tenor - applies to the future type SwapPerpetual. Used for LDX Constant Maturity Swap Futures, which do not have an expiry date.

Last Trading Time

Enter the time of day that trading will end on the last trading day. Use twenty-four hour time notation (for example 16:30 is four-thirty in the afternoon).

Time Zone

Select the time zone of the trading time.

Expiration Date Schedule

Last Trade Date Schedule

First Delivery Date Schedule

Last Delivery Date Schedule

First Notification Date Schedule

Last notification Date Schedule

Type in a few letters (at least 2) in a date schedule field. All date schedules that contain those letters will appear. You can select a date schedule from the list.

A date schedule can be a date rule or a manual date schedule.

Date rules are created using Configuration > Definitions > Date Schedule Definitions > Date Rule from the Calypso Navigator - Help is available from that window.

Manual date schedules are created using Configuration > Definitions > Date Schedule Definitions > Manual Date Schedule from the Calypso Navigator - Help is available from that window.

First Delivery Use Prev Date

Last Delivery Use Prev Date

You can check these boxes so that the delivery date is before the last trading date. It is the next expiry date otherwise.

For example, if the expiry date has a date rule "15th of every month" and the first delivery has a date rule "1st of every month".

•

If "First Delivery Use Prev Date" is checked, the December future will have "expiry date=Dec 15th" and "first delivery date=Dec 1st".

•

If "First Delivery Use Prev Date" is not checked, the December future will have "expiry date=Dec 15th" and "first delivery date=Jan 1st".

1.2 Underlying Panel

Select the Underlying panel to select the underlying product of the contract.

The selection criteria depend on the type of contract.

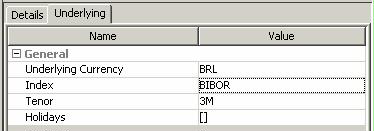

Underlying - BRL

Select an underlying currency, a reference index, a tenor, and holiday calendars as needed.

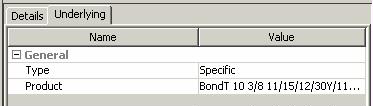

Underlying - Bond

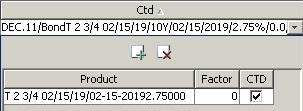

You can select type "Specific" to select a specific Bond product. Bond products are created using Configuration > Fixed Income > Bond Product Definition from the Calypso Navigator.

Select a Bond product.

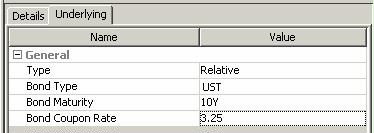

You can also select type "Relative" to define a generic bond.

Select a bond type, a maturity, and enter a coupon rate to define the generic bond.

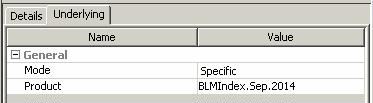

Underlying - CDS Index

You can select type "Specific" to select a specific CDS Index product. CDS Indices are created using Configuration > Credit Derivatives > CDS Index Definition from the Calypso Navigator.

Select a CDS Index Definition.

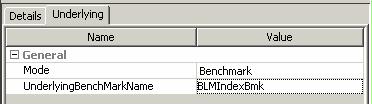

You can also select type "Benchmark" to select a benchmark over a CDS index. CDS Index benchmarks are created using Configuration > Fixed Income > Benchmarks from the Calypso Navigator. After the last trading day, the future contract will be rolled to the next one.

Select a CDS Index Benchmark.

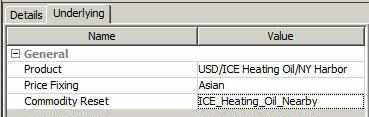

Underlying - Commodity

Select a Commodity product. Commodity products are created using from the Calypso Navigator.

Depending on the type of product, additional parameters will be requested: price fixing, commodity reset, physical delivery reset, default delivery contract, etc. Sample Commodity Futures are shown in the Calypso Commodities documentation.

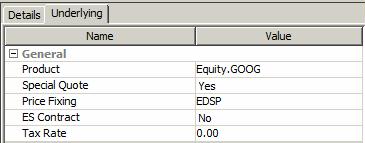

Underlying - Dividend, Dividend Index

Select an Equity or Equity Index product.

Equities are created using Configuration > Equity > Stock from the Calypso Navigator.

Equity Indices are created using Configuration > Equity > Equity Indices from the Calypso Navigator.

You can set "Special Quote = Yes" to allow creating special quote names - You need to select the fixing type in that case - Upon saving the products, the system will save the standard quote name, and "<standard quote name>.<fixing type>" - The special quote is used on expiration date.

The following fixing types are supported in addition to CLOSE, OPEN, HIGH, LOW, and LAST:

–

Future Price Reference (EDSP) - This is a special quote typically known at the Open of the market trading. EDSP is published by a future or option exchange.

–

Volume Weighted Average (VWAP) - The average price of the day is popular as a fixing because many exchanges and brokers allow clients to Buy or Sell shares at the VWAP. Therefore, Fixing at the VWAP facilitates the orderly removal of hedge transactions.

–

Prezzo di Riferimento (PDR) - A special Italian Exchange-published level that is used to settle exchange and OTC derivatives.

Set "Special Quote = No" otherwise.

You can set "ES Contract = Yes" to identify an ES contract (contract with specific rules for settlement).

You can set the number of days between the last trading date and the payment date in "SpotDaysES".

This applies to SGX to cover contracts that allow the settlement date to be any date between trade and last trading date + SpotDaysES.

Set "ES Contract = No" otherwise. Settlement date = trade date + spot days defined in the Exchange attributes.

Enter a tax rate as needed.

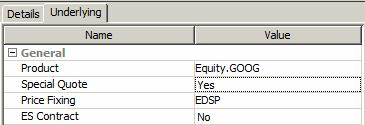

Underlying - Equity, Equity Index, Volatility

Select an Equity or Equity Index product.

Equities are created using Configuration > Equity > Stock from the Calypso Navigator.

Equity Indices are created using Configuration > Equity > Equity Indices from the Calypso Navigator.

The following fixing types are supported in addition to CLOSE, OPEN, HIGH, LOW, and LAST:

–

Future Price Reference (EDSP) - This is a special quote typically known at the Open of the market trading. EDSP is published by a future or option exchange.

–

Prezzo di Riferimento (PDR) - A special Italian Exchange-published level that is used to settle exchange and OTC derivatives.

Set "Special Quote = No" otherwise.

You can set "ES Contract = Yes" to identify an ES contract (contract with specific rules for settlement).

You can set the number of days between the last trading date and the payment date in "SpotDaysES".

This applies to SGX to cover contracts that allow the settlement date to be any date between trade and last trading date + SpotDaysES.

Set "ES Contract = No" otherwise. Settlement date = trade date + spot days defined in the Exchange attributes.

For Volatility, you can also select a daycount.

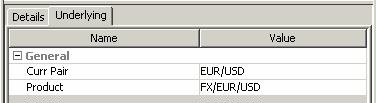

Underlying - FX

Select a currency pair. Currency pairs are created using from the Calypso Navigator.

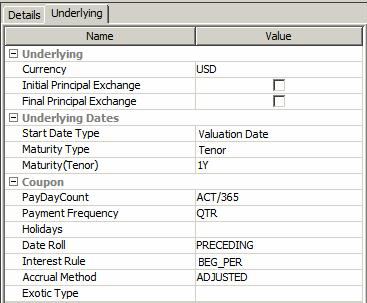

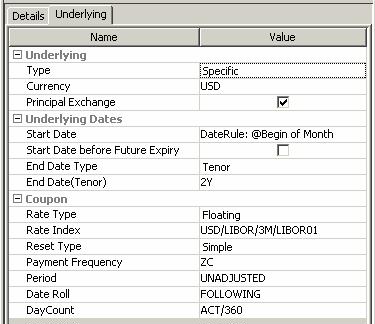

Underlying - Money Market (MM)

You can select type "Specific" to define a MM product on-the-fly.

Select a currency and whether there is principal exchange or not.

Select the underlying start date: it can be a date rule or a manual date schedule.

You can check "Start Date before Future Expiry" to handle lookback contracts. If checked, the start date to be picked up from the date schedule is the date preceding the future expiry date. If not checked, the start date will be equal to or greater than the future expiry date.

It should be checked for FedFunds, OIS and EONIA.

Select the end date type: it can be a tenor or a date schedule.

For a tenor, select a tenor.

For a date schedule, you can select a date rule or manual date schedule.

Select whether the coupon is fixed or floating, and the corresponding parameters.

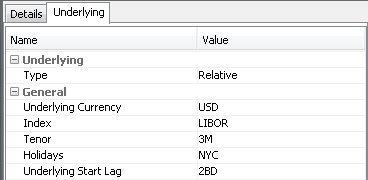

You can also select type "Relative" to select a rate index.

Select an underlying currency, a reference index, a tenor, holiday calendars, and an underlying start lag.

For Australian MM futures on SFE with IR/BB commodity codes, the 3M tenor can act as 90D tenor. On the Rate Index, set the attribute "USE_ACT_365_CONVENTION" to true to have the 90D behavior on cashflow forward end date, the date roll convention to NO_CHANGE, and the daycount to ACT/365.

Underlying - StructuredFlows

Structured flows are exotic legs - This can be used for defining Brazilian DDI futures.

See Sample DDI Future Setup for details.

Select a currency and whether there is principal exchange or not.

Select the underlying start date: it can be a date or a date schedule.

For a date schedule, you can select a date rule or a manual date schedule.

It should be checked for overnight rate indices.

Select the end date type: it can be a tenor or a date schedule.

For a tenor, select a tenor.

For a date schedule, you can select a date rule or a manual date schedule.

Select the payment parameters.

Select the exotic type - Exotic types are created using from the Calypso Navigator.

Underlying - Swap

Ⓘ [NOTE: The Swap Underlying settings panel above is also applicable when future contract Type = SwapPerpetual.]

Enter the notional and select the start date: it can be a date rule or a manual date schedule.

Qualify each leg of the swap: fixed or floating and corresponding parameters.

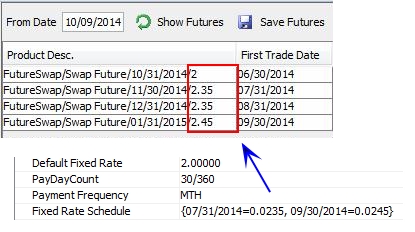

For a fixed leg, you can define a fixed rate schedule. The dates should correspond to the First Trade Dates. If the rate is not defined for a given date, the previous defined rate is used if any. The default fixed rate is used otherwise.

You can see the rate in the product description of the generated futures.

For ERIS Swap Futures, which mature on the Expiry Date, select the “Matures on Expiry” checkbox.

For LDX Constant Maturity Swap Futures, only the Maturity tenor is needed – the Start Date rule can be left blank. The Default Fixed Rate property is ignored.

2. Generating Future Products

Load a contract from the Search field. Then select a start date and click Load on the right-hand side.

For Bond Futures, you need to select the cheapest-to-deliver bond from the "Ctd" column - This is needed regardless of the type of settlement method - It is used to compute PV01 for bond futures as CTD PV01 / CTD factor when FUTURE_FROM_QUOTE=false.

–

Click

to select a deliverable bond. You can add multiple bonds as needed.

–

Check CTD for the cheapest-to-deliver.

–

You can enter a factor as applicable. This is the conversion factor between the bond future and the deliverable bond.

The product code Prompt Month is populated by the Comments of the manual expiration schedule if Future Option Name Month = "Prompt Month".

Click Save Futures to save the actual future products that can be traded.

For certain types of contracts, you can click Save Curve Underlyings to save underlying futures that can be used in curve construction.

You can select to configure the layout. Then you can select to save the layout, otherwise it will be lost upon closing the window.

Details on Dates Generation

The dates of the Future products are set by default as follows - You can modify them as needed.

•

First Trade Date: Set to the Expiration Date.

•

Last Trade Date: Set to the previous date generated by "Last Trade Date Schedule", or to the Expiration Date if no schedule is set.

•

First Delivery Date: Set to the next date generated by "First Delivery Date Schedule", or to the Expiration Date if no schedule is set.

•

Last Delivery Date: Set to the next date generated by "Last Delivery Date Schedule", or to the Expiration Date if no schedule is set.

•

First Notification Date:

–

Commodity: Set to the next date generated by "First Notification Date Schedule".

–

All other products: Set to the next date generated by "First Notification Date Schedule", or to the Expiration Date if no schedule is set.

•

Last Notification Date:

–

For Commodity: Set to the next date generated by "Last Notification Date Schedule".

–

All other products: Set to the next date generated by "Last Notification Date Schedule", or to the Expiration Date if no schedule is set.

•

Last CCP Date: Set to the Expiration Date + Last CCP Date Lag (number of business days).

3. Sample FedFund Future Setup

FedFund Rate Index Definition

Attributes:

Average Rate Details:

FedFund Manual Date Schedule

FedFund Contract Definition

4. Sample DDI Future Setup

The DDI Future is a future on the spread between the CDI rate index and the USD / BRL exchange appreciation.

Exotic Structure

The spread between the CDI rate index and the USD / BRL exchange appreciation is defined as an exotic structure.

You first need to define the exotic variables qCDI (exotic variable on the CDI rate index), and qPTAX (exotic variable on the currency pair USD/BRL using Configuration > Interest Rates > Exotic Variables from the Calypso Navigator.

Then from the Calypso Navigator, navigate to Configuration > Product > Exotic Type Creator to define the exotic structure.

In the Variables panel, define the following variables:

In the eXSP Structure panel, define the following structure:

Save the exotic structure and give it a name.

DDI Future Contract Details

Select the "StructuredFlows" type to allow selecting the exotic structure as an underlying.

Select the tick type "Variable" and enter the nominal calculator "BRLNominalCalculator".

Select the exotic structure that you have created which represents the spread between the CDI rate index and the USD / BRL exchange appreciation.

Once a DDI Future is defined, it can be traded as a standard future trade or as an FRC trade.

See Capturing Future Trades for details.

5. Sample Swap Future Setup

Swap Futures currently support the following products: the CME Deliverable Swap Future, the ERIS Swap Future and the EUREX LDX Constant Maturity Swap Future.

5.1 CME Deliverable Swap Future

Date Rules Setup

Sample date rule for Expiration Date.

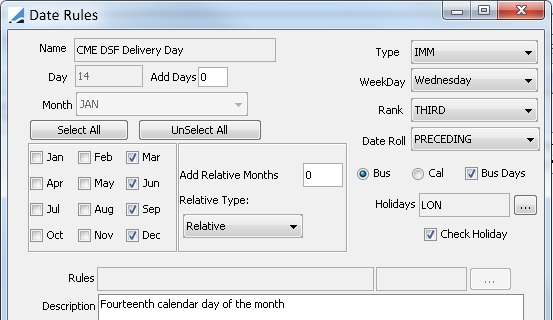

Sample date rule for Delivery Date

CME Deliverable Future Swap Contract Details

Select "Swap" for the future Type.

Select an Expiration Date and
First Delivery Date schedule.

Select the date rule for the Start Date.

Select the tenor for Maturity.

Configure details for Pay and Receive legs.

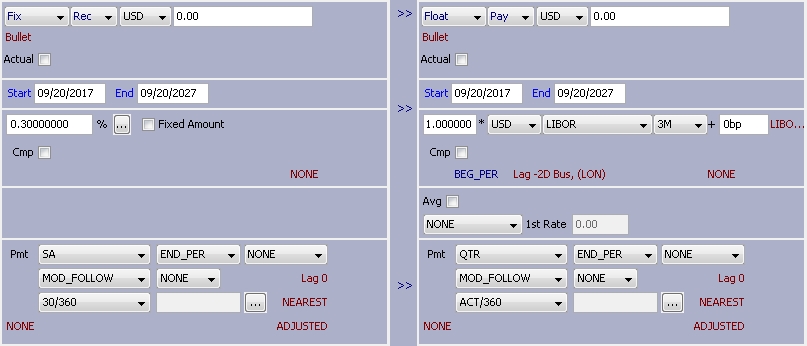

Swap Underlying

5.2 ERIS Swap Future

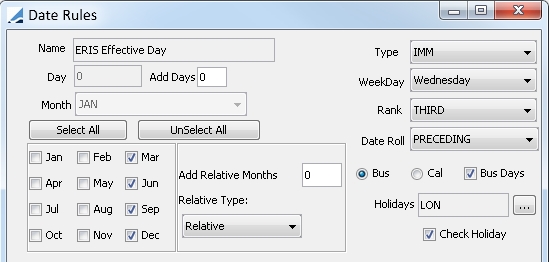

Date Rule for Start Date

ERIS Future Contract Details

Select "Swap" for the future Type.

Select the date rule for Start Date.

Select the "Matures on Expiry" checkbox.

Select the tenor for Maturity.

Configure details for Pay and Receive legs.

Swap Underlying

5.3 EUREX LDX Constant Maturity Swap Future

LDX Constant Maturity Swap Future Contract Details

Select "SwapPerpetual" for the future Type.

For "Date Format" select Underlying Maturity Tenor.

Select the tenor for Maturity.

Configure details for Pay and Receive legs.

Swap Underlying

6. Sample SOFR Futures

SOFR futures are based on the Secured Overnight Financing Rate (SOFR), which is underpinned by the US Treasury overnight repurchase (repo) market. The futures are currently offered in 1-month and 3-month contracts. The sample setups here represent the recommended configurations for the SOFR rate index and futures in Calypso.

6.1 Rate Index for SOFR

Rate Definition Tab

The rate index definition for SOFR futures.

Rate Index Attributes

More details are provided in the Calypso Getting Started documentation if needed.

Tenors Tab

Only the 1D tenor is currently available in the market.

6.2 One-Month SOFR Futures

Date Rules

Last Trading Date is the last business day of the month.

The Underlying Start and End Dates for SOFR 1M is the first calendar day of the month.

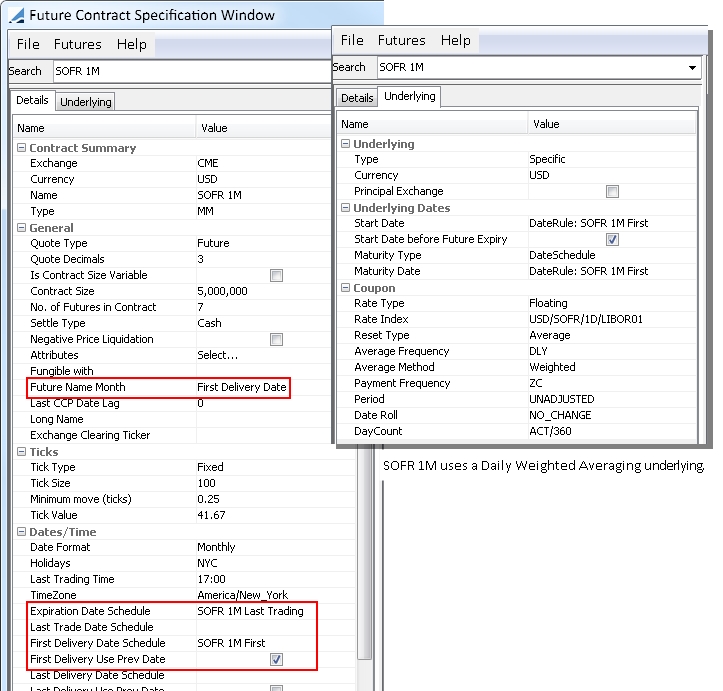

Future Contract Configuration

The Future Contract Configuration for SOFR 1M is similar to CBOT FedFunds 30D Futures. Note that the First Delivery Date is being used as the Future Name Month and is being set to equal the Start Date on the Underlying tab.

After loading the futures, the dates should appear similar to those below.

6.3 Three-Month SOFR Futures

Date Rules

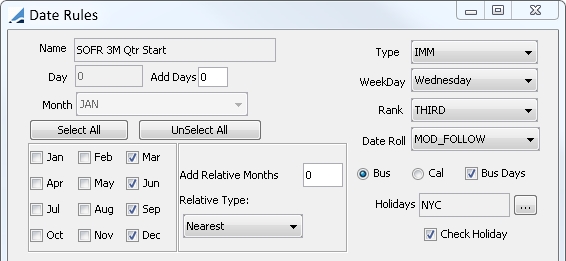

The Underlying tab Start Date and End Date are quarterly from IMM Wed to IMM Wed.

The Expiry/Last Trading Date is the last good business day before the delivery month’s IMM Wed.

Future Contract Configuration

Note that the First Delivery Date is being used as the Future Name Month and is being set to equal the Start Date on the Underlying tab.

After loading the futures, the dates should appear similar to those below.
