Withholding Tax Generation

When you set the environment property SEC_WITHHOLDINGTAX=true, the withholding tax will be automatically withdrawn from the coupons, and reclaim fees will be automatically generated.

The setup is described below.



1. Bond Definition

Bonds are defined using Configuration > Fixed Income > Bond Product Definition.

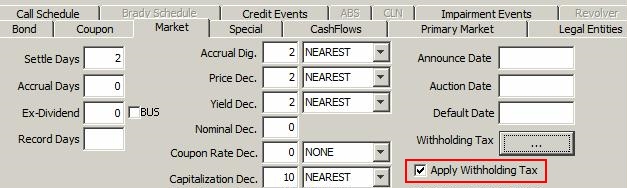

In the Bond Definition window, select "Apply Withholding Tax" in the Market panel.

»

You can click ... next to the Withholding Tax field to set up the withholding tax rates and reclaim rates per bond's country (country paying income) and position holder's country (country receiving income). It brings up the Withholding Tax Config window.

The Withholding Tax Config window can also be accessed from Configuration > Fees, Haircuts, & Margin Calls > Withholding Tax Config.

See Withholding Tax Rates Configuration for details.



2. Tax Authority Setup

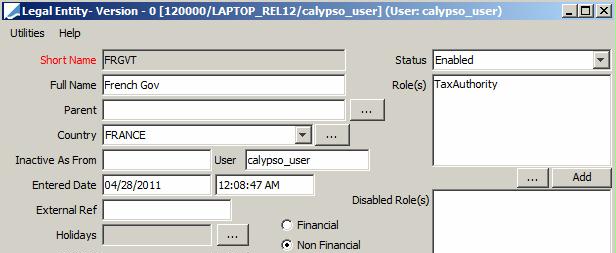

You need to define a legal entity of role TaxAuthority that will receive the reclaim fee if any.



3. Processing Org Setup

A processing org could be exempt from paying the withholding tax.

Set the legal entity attribute IsExempt=Yes to exempt the processing org.



4. Withholding Tax Rates Configuration

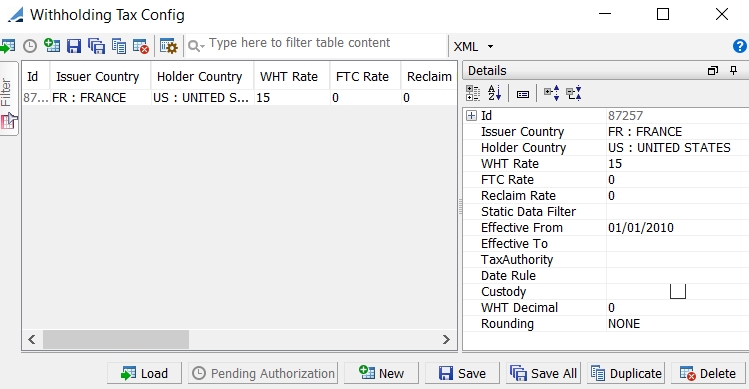

The Withholding Tax Config window can be accessed from Configuration > Fees, Haircuts, & Margin Calls > Withholding Tax Config, or by clicking ... next to the Withholding Tax field in the Market panel of the Bond Definition window.

»

Click New to add a new configuration, and enter the details in the Details area. The details are described below.

»

Then click Save to save your changes. You can specify multiple rates for the same issuing country using static data filters to determine the context of application of the rates.

Note that if the Authorization mode is enabled, an authorized user must approve your entry, provided that "WithholdingTaxConfig" has been added to the classAuthMode domain.



Details

Fields	Description
Id	The ID is unique to each configuration. The system generates the ID when the configuration is saved.
Issuer Country	Select the country of the bond.
Holder Country	Select the country of residence of the processing org that purchased the bond.
Rate	Enter the withholding tax rate. The withholding tax amount will be withdrawn from the coupon amount when the corporate actions are generated.
Reclaim Rate	Enter the reclaim rate if applicable. The reclaim fee will be generated on the internal coupon CA for P&L impact, and on the agent coupon CA for payment to the Tax Authority.

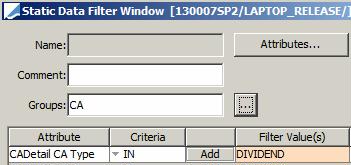

Static Data Filter	Select a static data filter if applicable. This is mostly needed if you have multiple rates for the same issuer country. You can also use the static data filter to restrict the corporate actions to which the withholding tax is applied. The static data file must be defined with Groups = CA and must contain CA-related attributes.
Effective From Effective To	Select a start date and end date for the configuration. This applies if the rates change on a certain date.
TaxAuthority	Select the legal entity that will receive the reclaim fee if any - This is only used when a Reclaim Rate is set.
Date Rule	Select the date rule that determines the payment frequency of the reclaim fee if any - This is only used when a Reclaim Rate is set.
Custody	If Custody is checked, the CA process, when calculating the net interest amount, checks if the CA trade book has the attribute “Custody Book” set to true. If so, it selects the WHT config (if any) where the Holder Country is the CA trade’s client/counterparty country. If Custody is not checked, the Holder Country is the country of the PO.
WHT Decimal	Enter the number of decimal places to round the withholding tax amount as needed.
Rounding	Select the rounding method for the withholding tax amount as needed.



5. Fee Definition

Reclaim fees are defined using Configuration > Fees, Haircuts, & Margin Calls > Fee Definition.

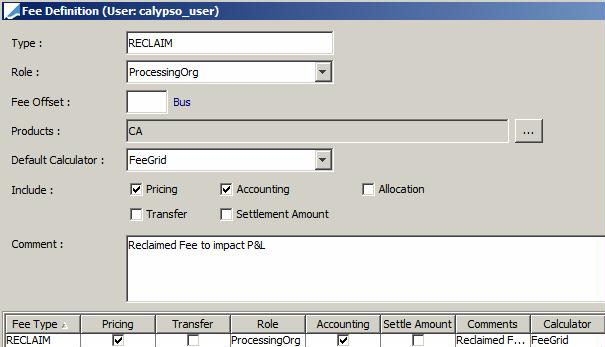

There is one fee for the PO to impact the P&L on the internal CA trade: It must be named RECLAIM.

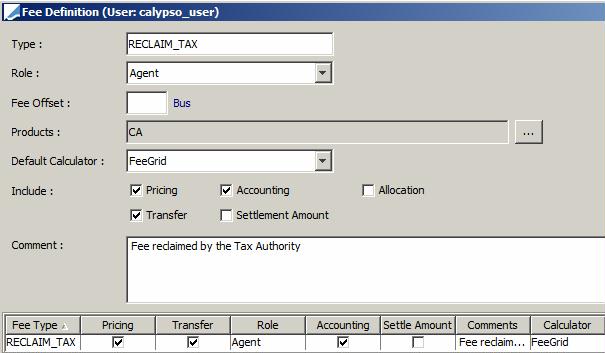

There is another fee for the Tax Authority to generate a transfer on the Agent CA trade: It must be named RECLAIM_TAX.



 Ⓘ   [NOTE: You don't need to actually define a fee grid; they will use the Withholding Tax Rates Config]



6. Corporate Action Generation

From the Calypso Navigator, navigate to Trade Lifecycle > Corporate Action > Corporate Action.

Generate a coupon on the bond.

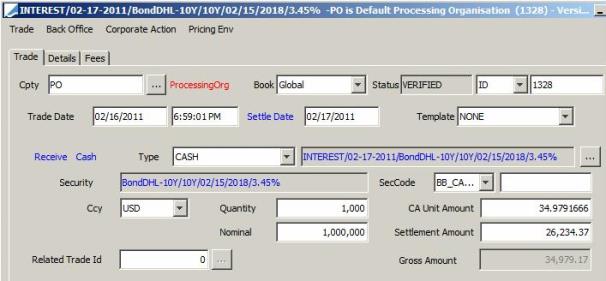

Internal Trade (for P&L impact purposes)

The Gross Amount shows the full coupon, and the Settlement Amount shows the coupon reduced by the withholding tax.

In the Fees panel, you can see the reclaim fee.

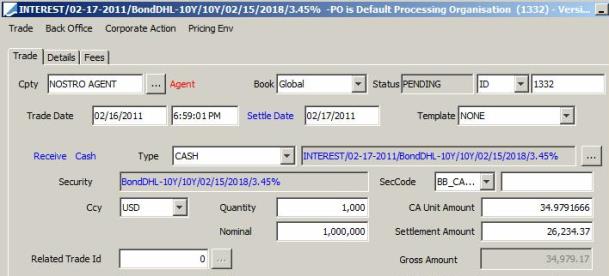

Agent Trade

Similarly, the Gross Amount shows the full coupon, and the Settlement Amount shows the full coupon reduced by the withholding tax.

In the Fees panel, you can see the reclaim fee paid to the tax authority.



If the settlement of the agent trade fails, a CA claim trade is generated with the Counterparty instead of the Agent trade.

You can use the domain applyWHTClaimSameCountry to manage the application of Withholding Tax in case of CA claim trade generated by a failed transfer:

•

If the domain is not configured, WHT is applied on CA trade with Counterparty.

•

If the domain contains Value = true, WHT is applied on CA trade with Counterparty only if issuer's country = holder's country.

•

If the domain contains Value = false, no WHT is applied on CA trade with Counterparty.



7. Accounting Setup

The following accounting events allow generating postings for the WHT:

•

WHT Amount = Quantity * CA Unit Amount * WHT Rate

•

Net WHT Amount = Quantity * CA Unit Amount * (WHT Rate - Reclaim Rate)

•

Full Coupon = Quantity * CA Unit Amount

•

Refund Amount = Quantity * CA Unit Amount * Reclaim Rate



Accounting Events	Dates	Amount	Triggering Events	Properties
FULL_COUPON To book the amount of the full coupon in case of WHT (coupon corporate action). If there is no WHT, FULL_COUPON = INTEREST.	Booking Date - Today or coupon payment date, whichever is later Effective Date - Coupon end date	Full Coupon amount to be paid by agent	LIQUIDATED_POSITION UNLIQUIDATED_POSITION	Retroactivity - FULL Booking Type - N/A Event Class - BALANCE Event Property - NONE
NET_WITHHOLDINGTAX To book the amount of the withholding tax amount less the reclaim amount.	Booking Date - Today or coupon payment date, whichever is later Effective Date - CA trade settle date	Full coupon amount * (WHT rate – Reclaim rate)	LIQUIDATED_POSITION UNLIQUIDATED_POSITION	Retroactivity - FULL Booking Type - N/A Event Class - REALIZED Event Property - NONE
WITHHOLDINGTAX To book the WHT tax amount to be deducted.	Booking Date - Today or coupon payment date, whichever is later Effective Date - Coupon end date	WHT amount = Full coupon * WHT rate	LIQUIDATED_POSITION UNLIQUIDATED_POSITION	Retroactivity - FULL Booking Type - N/A Event Class - BALANCE Event Property - NONE
RECLAIM_TAX To book the tax amount to be reclaimed.	Booking Date - Today or coupon payment date, whichever is later Effective Date - CA trade settle date	Full coupon amount * Reclaim rate	LIQUIDATED_POSITION UNLIQUIDATED_POSITION	Retroactivity - FULL Booking Type - N/A Event Class - REALIZED Event Property - NONE



8. Prepaid Withholding Tax and Tax Allowance

Withholding tax can also be prepaid on the trades by the counterparty.

This requires the following setup.



8.1 Counterparty Setup

The withholding tax rate is based on counterparty and the bond's country.

You need to define the following legal entity attributes:

LegalEntityTaxRate_<COUNTRY> where <COUNTRY> is the bond's country.

They contain the withholding tax rate in percentage.

Example:



8.2 Fee Definitions

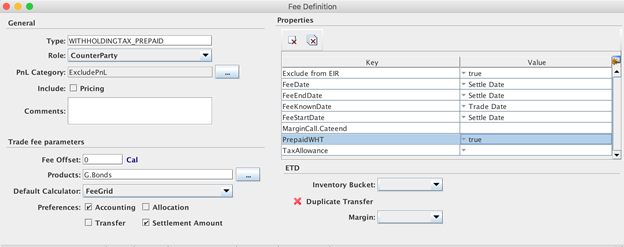

WITHHOLDINGTAX_PREPAID

You need to set:

•

Role = CounterParty

•

Default Calculator = FeeGrid

•

Settlement Amount = Checked

•

Property PrepaidWHT = true



TAX_ALLOWANCE

You need to set:

•

Role = CounterParty

•

Default Calculator = FeeGrid

•

Settlement Amount = Checked

•

Property TaxAllowance = true

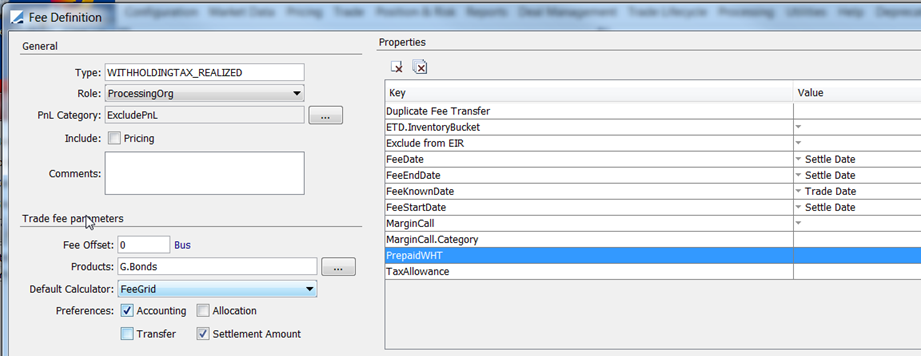

WITHHOLDINGTAX_REALIZED

Used for redemptions.



8.3 Fee Grid Configurations

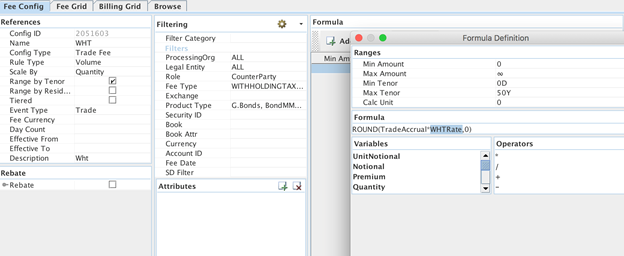

WITHHOLDINGTAX_PREPAID

You can use the following variables:

TradeAccrual correspond to the Accrual field of the trade.

LegalEntityWHT gets the WHT rate from legal entity attribute LegalEntityTaxRate_<COUNTRY>.



TAX_ALLOWANCE



WITHHOLDINGTAX_REALIZED

You can use the following variable:

WHTRate gets the WHT rate from the withholding tax configuration.



8.4 Pricer Measures

You can add the following pricer measures:



WITHHOLDINGTAX_PREPAID (fee pricer measure)

Class Name = tk.pricer.PricerMeasureGenericFee



TAX_ALLOWANCE (fee pricer measure)

Class Name = tk.pricer.PricerMeasureGenericFee



WITHHOLDINGTAX_REALIZED (fee pricer measure)

Class Name = tk.pricer.PricerMeasureGenericFee



ACCRUAL_WHT returns the amount of WHT for the ACCRUAL pricer measure (based on Withholding Tax Configuration rate)

ID = 918

Class Name = tk.pricer.calculators.PricerMeasureBond



ACCRUAL_SETTLE_DATE_WHT returns the amount of WHT for the ACCRUAL_SETTLE_DATE pricer measure (based on Withholding Tax Configuration rate)

ID = 919

Class Name = tk.pricer.calculators.PricerMeasureBond



Accounting Events

You can add the following accounting events:

WITHHOLDINGTAX_PREPAID

TAX_ALLOWANCE

WITHHOLDINGTAX_REALIZED

ACCRUAL_WHT

ACCRUAL_SETTLE_DATE_WHT

ACCRUAL_REAL_WHT returns the amount of WHT for the ACCRUAL_REAL accounting event (based on Withholding Tax Configuration rate)



9. Withholding Tax Trade Window Panel

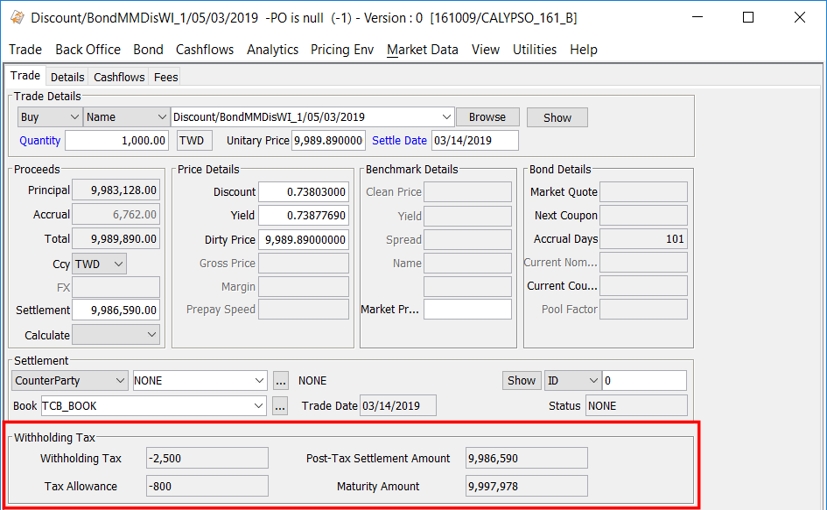

In the Bond Trade window and the Money Market Trade window, an optional Withholding Tax panel is available for displaying the withholding tax amounts.

From the trade window, choose View > Withholding Tax to add the Withholding Tax panel.



Withholding Tax Details

Fields	Description
Withholding Tax	Sum of fees with fee definition property PrepaidWHT = true.
Tax Allowance	Sum of fees with fee definition property TaxAllowance = true.
Post-Tax Settlement Amount	Post-Tax Settlement Amount = Settlement Amount + Withholding Tax + Tax Allowance
Maturity Amount	Only displayed for BondMMInterest and BondMMDiscountWithAI. Whether or not the "Apply Withholding Tax" checkbox is selected on the bond definition Market panel determines if the tax amount is removed or not. When "Apply Withholding Tax" is selected, Maturity Amount is calculated as: • For BondMMInterest: Maturity Amount = Notional + Total Accrual - RoundDown(Total Accrual * WHT Rate) Where Total Accrual = Round(Notional * Coupon Rate * Days/365, 0) (this is the interest cashflow) • For BondMMDiscountWithAI: Maturity Amount = Notional - RoundDown(Total Accrual * WHT Rate) Where Total Accrual = (100 - Issue Price) /100 * Notional When "Apply Withholding Tax" is not selected, Maturity Amount is calculated as: • For BondMMInterest: Maturity Amount = Notional + Total Accrual • For BondMMDiscountWithAI: Maturity Amount = Notional The amount is saved in the trade keyword MaturityAmount.
